Instruments Steering column

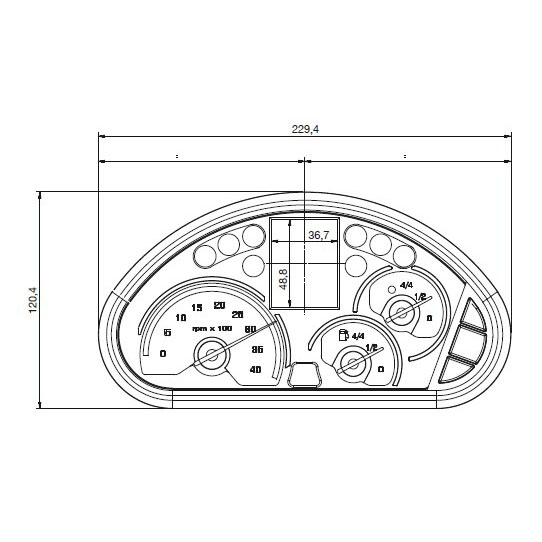

CCluster
../include/upload/uploadImages/images/20140618163005.jpg

 TECHNICAL FEATURES
• Power supply 8 – 32Vdc
• Operating temperature -20°C to 70°C
• Protection degree IP67
• 1 Fujitsu 16 bit automotive MPU
• 1 display TFT 2,4” 240xRGBx320 262K color 220cd/m²
• 12 digital input active low or high (configurable by SW)
• 1 digital input active low or high (configurable by SW) or HSD
output 2A
• 1 digital input active low or high (configurable by SW) or frequency
input for NPN or PNP sensor
• 2 digital input active low or high (configurable by SW) or analog
input (resistive or 4-20mA)
• 1 digital input active low or high (configurable by SW) or analog
input 4-20mA
• 1 digital input active low or high (configurable by SW) or CAN L line
• 2 digital input active low or high (configurable by SW) or CAN H line
• 1 frequency input for W signal (RPM) or HSD output 2A
• 1 resistive input 0 -2Kohm
• 1 resistive input 0 – 500ohm
• 3 pushbutton
• 1 internal buzzer
• 1 CANBUS line
• 10 LED indicators
• 3 stepper motor gauge
• Connector Tyco AMP 640505-01
• CAN BOOTloader for FW upgrade
• Programmable with C languages or graphical SW eDash 3K powered
by Ama
